Product Features:

The program helps you perform the following

operations:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code

definitions in the database).

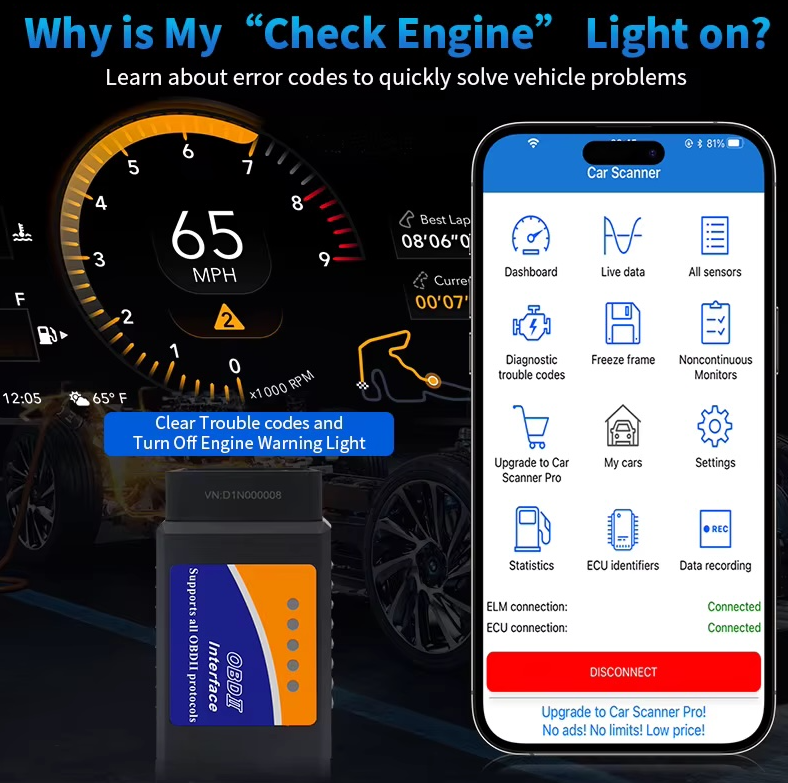

2. Clear trouble codes and turn off the MIL (“Check Engine” light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

AND many others…

Compatible Software & Platform:

√ Compatible software:

For Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, Car Scanner ELM OBD2, OBD dash;

For Android version: Torque, inCarDoc, DashCommand, EOBD, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;

For iOS version: inCarDoc, DashCommand, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;

For Symbian version: OBDScope.

√ Compatible platform：

Support System: Windows XP, Windows 7/8, Windows 10, Android, iOS, Symbian.

Specifications:

Communication method: Bluetooth 4.0

Master chip: No master chip.

Compatible platform: Android / iOS/Windows

Firmware version: V 1.5

Operating voltage: 9V~16V

Operating current: 16mA

Operating temperature: -40°C~85°C

Storage temperature: -30°C~80°C

Operating humidity: <60%

OBDII protocols supported: OBDII 9 protocols

Shell material:ABS

Protocol Support:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
