Universal Compatibility:

OBD-II Standard Is Supported By The Vehicles(Which Car Support The 9 OBD2 Protocols)

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Features:

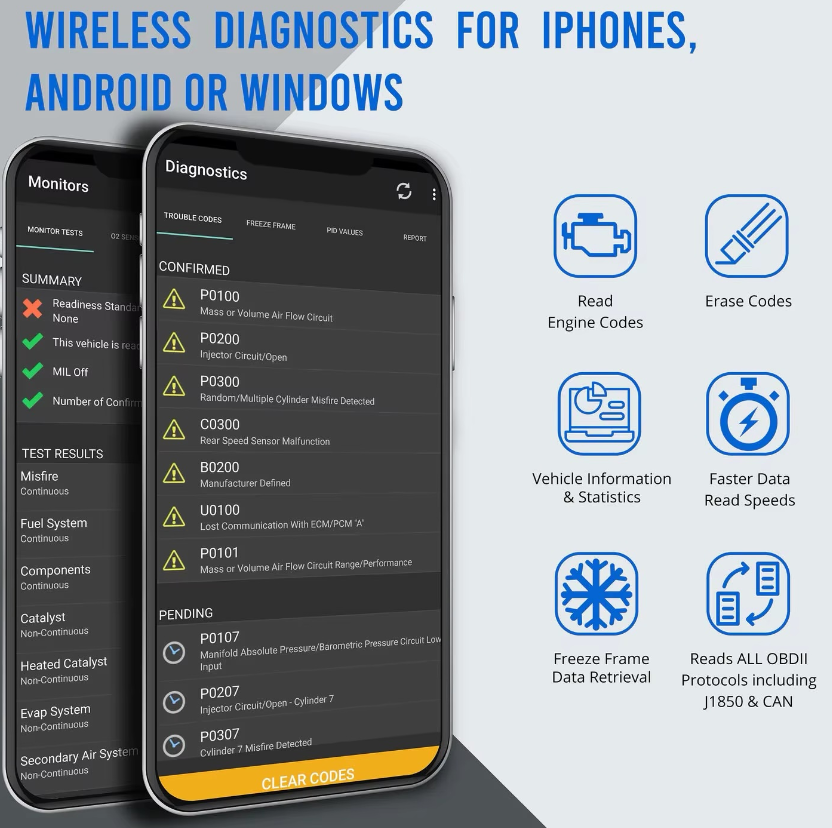

– Read Fault Code & Clear Fault Code .

Read Diagnostic Trouble Codes, Both Generic And Manufacturer-Specific, Display Meaning Over 3000 Generic Code Definitions In the Database.

Clear Trouble Codes And Turn Off The MIL (“Check Engine” light).

-Fault Code Analysis & View Freeze Frame.

Display Current Sensor Data, Including:

Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure, and etc.

-Vehicle Info.

Display The Graph And Log Real-Time Sensor Reading.

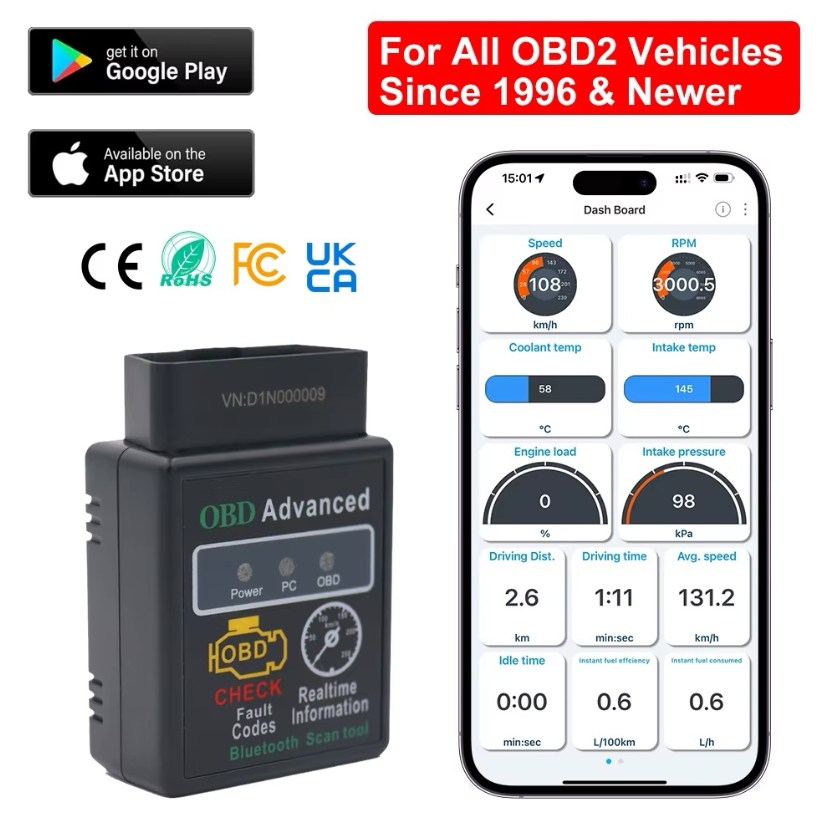

Create You Own Dashboard And Select The PIDs That You Want To See

How To Connect With Your Phone?

1. For iPhone Phone Or iPad.

Do Not To Connect OBD2 Through Bluetooth Settings. As It Will Lead to An Error. You Just Need To Start The App To Connecting. And The Bluetooth Connection Will Be Done Succeeded Through The App(Not Through The Bluetooth Setting Of The Phone / iPad).

2. If You Have Connected Through The Bluetooth Settings And Scanner No Longer Shows Up?

Please Restart iPhone, Then It Will Show Up.

3. If It Doesn’t Pair With Your Android Phones?

Restart Phone.

Turn off Bluetooth And Return.

Disconnect Any other Bluetooth Devices.

NOTE:

1. Scanner Does Not Use WiFi To Connect.

2. For Android Devices, Please Change The Default Bluetooth Pairing Pin To 1234 In The Head Unit Bluetooth Setting.
