Products Specifics

Communication method: Bluetooth 4.0

Master chip: PIC18F25K80

Compatible platform: Android / Windows / iOS

Operating voltage: 9V~16V

Operating current: 45mA

Standby current: 35mA

Operating temperature: -40°C~85°C

Operating humidity: <60%

Product size: 45mm*40mm*18mm

2.Product Features

The program lets you perform the following operations:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

 Clear trouble codes and turn off the MIL (“Check Engine” light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

AND many others…

3.Protocol Support

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO9141-2(5 baud init, 10.4Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

4.Software & Platform

Compatible software:

For Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN, Car Scanner ELM OBD2, OBD dash;

For Android version: Torque, inCarDoc, DashCommand, EOBD, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;

For iOS version: inCarDoc, DashCommand, Car Scanner ELM OBD2, OBD Auto Doctor, OBD Fusion;

For Symbian version: OBDScope.

Compatible platform

Support System: Windows XP, Windows 7/8, Windows 10,Android,iOS,Symbian;

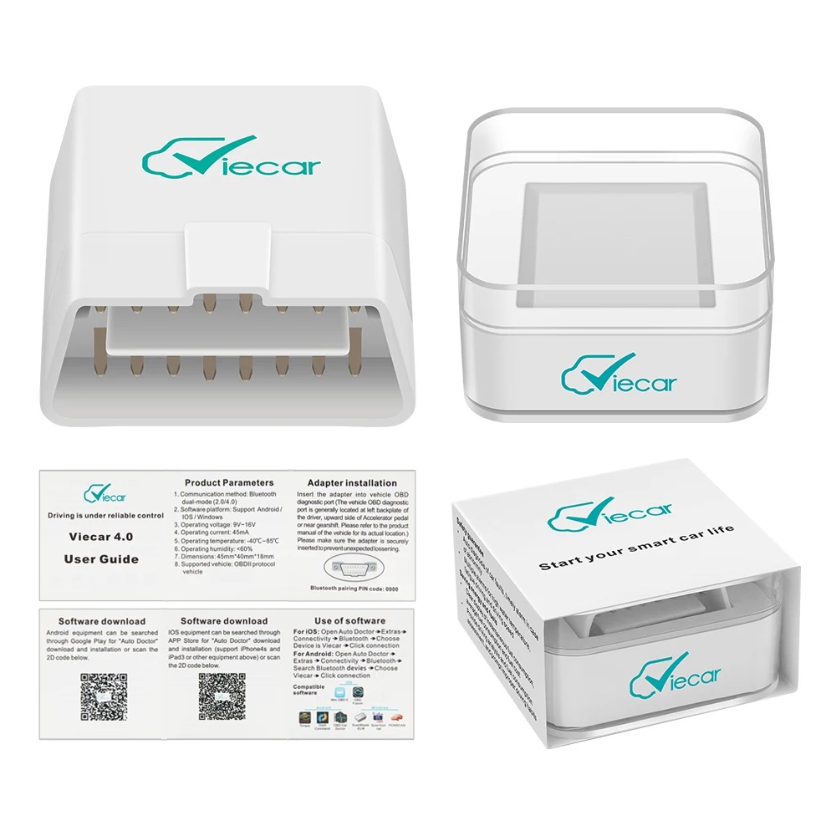

5.Packing list

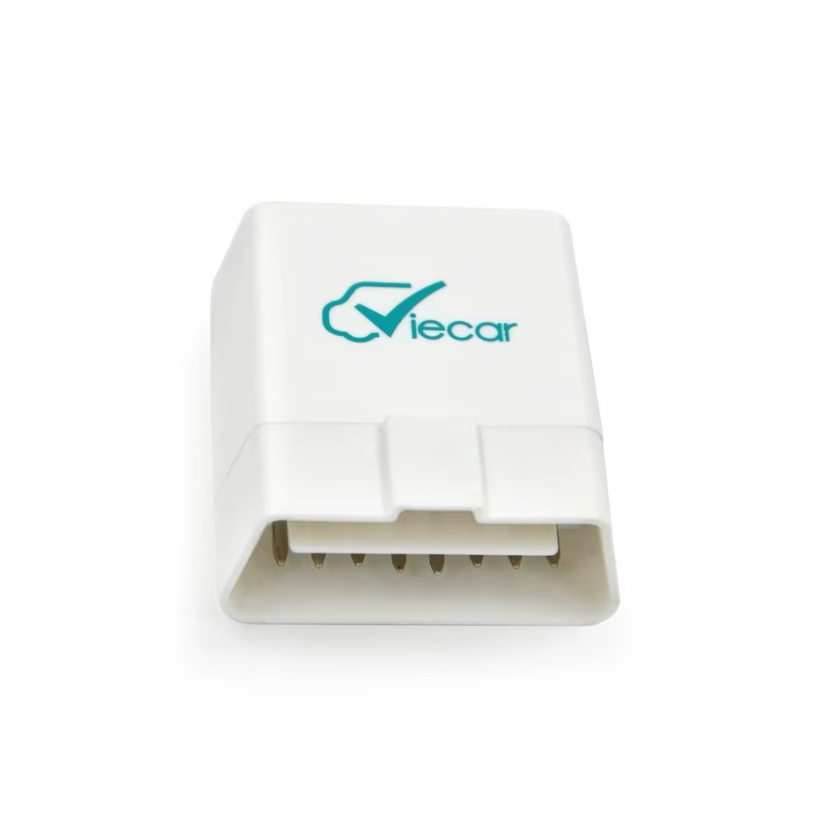

1 x Bluetooth 4.0 OBDII

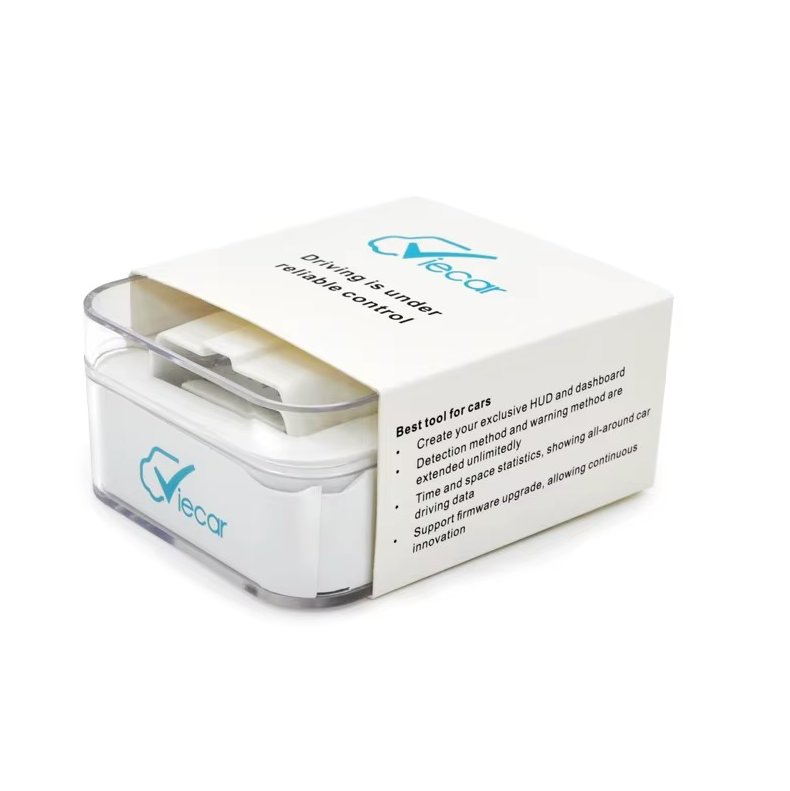

1 x Acrylic Box

7.Warranty

Certified CE, FCC, RoHS compliant
